When you order DER EE VU meter, please indicate about the following information:
■ Meter Dimension	Please indicate meter size
■ Internal Resistance	250Ω , 650Ω, 750Ω, 1200Ω
■ Sensitivity	200µA , 250µA , 500µA, 1mA
■ Pointer Color	As your color request
■ Scale Plate	Custom design according to your drawing
■ Lamp	Standard type is 12V/55mA transparent.
	If you request special specs., please indicate the voltage and current
■ Install position of the level meter	Vertical or horizontal
■ Popular spec	500µA/650Ω

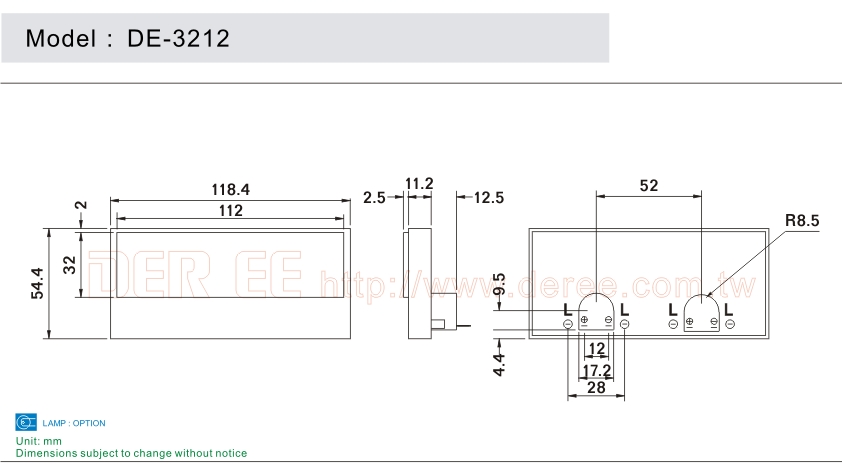

● SIZE : 118.4 x 54.4 x 26.2 mm

● LAMP：OPION
