DE-208A デジタルマルチメータ
Resistance, Diode, Buzzer, Capacitance, Frequency, Temperature, REL. , dBV/dBm, USB
True RMS
6700 Counts
- LCD Display：6700 Counts
- Sampling Rate：Approx. 4 Times/Sec.
- Range：Automatic & Manual
- Overload：”OL” Display On LCD
-
Low Battery：
Display On LCD
- Auto Power Off：In 20 Minutes Approx.
- Battery：9V x1
- Safety standard：IEC 61010-1 CAT IV 600V IEC 61010-1 CAT.III 1000V
Measurement Ranges：
23°C ±5°Cmax. 80%R.H. Accuracy: ±(%rdg +dgt) *cts=counts
|
Measurement |
Range |
Resolution |
True RMS Accuracy |
OL display |
Input Resistance |
||
|
40Hz ~ 1kHz |
1kHz ~ 3kHz |
3kHz ~ 10kHz |
|||||
|
ACV |
6.700V |
0.001V |
0.8%+3 |
1.0%+3 |
2.0%+3 |
>6700 counts |
Approx 10MΩ/<50pF |
|
67.00V |
0.01V |
||||||
|
670.0V |
0.1V |
||||||
|
1000V |
1V |
1.0%+3 |
－ |
－ |
>1050V : OL + beep in urgent sounds + LCD flashing. |
||
*RMS value detection, sine wave
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
Input Resistance |
|
DCV |
6.700V |
0.001V |
0.09%+2 |
>6700 counts |
Approx. 10MΩ |
|
67.00V |
0.01V |
||||
|
670.0V |
0.1V |
||||
|
1000V |
1V |
>1050V: OL + beep in urgent sounds + LCD flashing. |
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
Input Resistance |
|
DCmV |
67.00mV |
0.01mV |
0.09%+3 |
>6700 counts |
Approx 10MΩ |
|
670.0mV |
0.1V |
0.09%+2 |
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
Input Resistance |
||
|
40Hz ~ 1kHz |
1kHz ~ 3kHz |
3kHz ~ 10kHz |
|||||
|
ACmV |
67.00mV |
0.01mV |
0.8%+3 |
1.0%+3 |
2.0%+3 |
>6700 counts |
Approx 10MΩ |
|
670.0mV |
0.1mV |
||||||
*RMS value detection, sine wave
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
Open Circuit Voltage |
|
Ω Resistance |
670.0Ω |
0.1Ω |
0.5%+5 |
>6700 counts |
<1.2V |
|
6.700kΩ |
0.001kΩ |
||||
|
67.00kΩ |
0.01kΩ |
||||
|
670.0kΩ |
0.1kΩ |
||||
|
6.700MΩ |
0.001MΩ |
1.5%+3 |
|||
|
67.00MΩ |
0.01MΩ |
1.8%+3 |
|
Measurement |
Range |
Resolution |
Remarks |
OL display |
Open Circuit Voltage |
|
Continuity |
670.0Ω |
0.1Ω |
Buzzer < 30Ω±3Ω |
>670.0Ω |
<1.2V |
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
Open Circuit Voltage |
|
Diode |
2.400V |
0.001V |
1.0%+2 |
>2400 counts |
<2.5V |
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
|
Capacitance |
20.00nF |
0.01nF |
1.5%+10 |
>2000 counts |
|
200.0nF |
0.1nF |
1.2%+5 |
||
|
2.000μF |
0.001μF |
|||
|
20.00μF |
0.01μF |
|||
|
200.0μF |
0.1μF |
|||
|
2.000mF |
0.001mF |
1.5%+5 |
||
|
30.00mF |
0.01mF |
2.0%+5 |
>3000 counts |
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
|
|
TEMP |
°C |
-200.0°C ~ 200.0°C |
0.1°C |
0.5% +1°C |
<-200.0°C >1370°C |
|
200°C ~1370°C |
1°C |
||||
|
°F |
-328.0 °F ~392.0 °F |
0.1°F |
0.5% +2°F |
<-328.0°C >2498°F |
|
|
392 °F ~2498 °F |
1°F |
||||
|
Temperature of the interior of meter (at sub-display) |
─ |
approx.<-20°C(-4°F) approx.>70°C(158°F) -OL display + beep |
|||
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
|
|
DC |
μA |
670.0μA |
0.1μA |
0.2%+5 |
>6700 counts |
|
6700μA |
1μA |
||||
|
mA |
67.00mA |
0.01mA |
|||
|
670.0mA |
0.1mA |
||||
|
A |
6.7A |
0.001A |
0.5%+5 |
||
|
10A |
0.01A |
>20.1A: OL + beep in urgent sounds + LCD flashing when measure 11A ~ 20A > 30 sec. beep in continuity |
|||
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
|||
|
40Hz ~ 1kHz |
1kHz ~ 3kHz |
3kHz ~ 10kHz |
|
||||
|
AC |
μA |
670.0μA |
0.1μA |
0.6%+5 |
0.8%+5 |
1.2%+5 |
>6700 counts |
|
6700μA |
1μA |
||||||
|
mA |
67.00mA |
0.01mA |
1.0%+5 |
||||
|
670.0mA |
0.1mA |
||||||
|
A |
6.7A |
0.001A |
1.5%+5 |
||||
|
10A |
0.01A |
>20.1A: OL + beep in urgent sounds + LCD flashing when measure 11A ~ 20A > 30 sec. beep in continuity |
|||||
* RMS value detection, sine wave
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
|
Hz |
10.0 to 999.9Hz |
0.1Hz |
0.1%+1 ≦300.0kHz |
>9999 counts |
|
|
0.001kHz |
|||
|
0.01 to 99.99kHz |
0.01kHz |
|||
|
0.1kHz to 300kHz |
0.1kHz |
|
Measurement |
Range |
Resolution |
Accuracy |
OL display |
||
|
40Hz ~ 1kHz |
1kHz ~ 3kHz |
3kHz ~ 10kHz |
||||
|
dB V/ dB m |
-54~-3dBV -52~-1dBm (mV) |
0.01dB V/ dB m |
0.15dB V/ (1000V Range) |
0.17dB V/ dB m |
0.26dB V/ dB m |
>6700 counts (sub-display) |
|
-54~-3dBV -52~-1dBm (V) |
hen voltage > 1050V, OL + beep in urgent sounds |
|||||
★Temperature coefficient:
0.1 X (specified accuracy) / °C (<18 °C or >28 °C)
★MAX / MIN
It is added (0.2%+2cts) to the specified accuracy.
Sine wave.
★Peak ±
It is added (1%+30cts) to the specified accuracy, pulse ≧ 0.6msec
Sine wave.
TEMP./Humidity：
- Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
- 188(L)x95(W)x52(H)mm
- Approx.415g (excluding battery)
Accessories：
- 9V Battery x1
- Instruction Manual x1
- Test Leads (black + red) x1

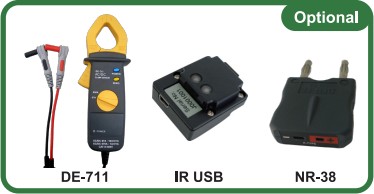

Optional Accessories：
- IR-USB interface adaptor
- USB cable
- Software CD ROM
- Clamp sensor (DE-711)
- K-TYPE temperature adapter (NR-38)
- K-TYPE thermocouple (NR-39)
-
True RMS
- Auto Hold / Data hold
- Auto power off selection
- Auto range & manual range
- Zero set for capacitance
- Overload protection with audible alarm
- Large LCD with dual displays
- Backlight：Blue
- Peak+ /Peak-
- Max / Min / Avg hold with real time
- Response to AC bandwidth ... max. 10kHz
- Optional Clamp Sensor:AC/DC 600A max. (DE-711)
- Bar graph Display
- Simultaneous display of measuring and meter interior temperature
