DE-5000 LCRメータ
100 / 120 / 1k / 10k / 100k Hz test frequency
20,000 / 2,000 counts display
Ls / Lp / Cs / Cp / Rs / Rp / DCR with D / Q / θ / ESR measurement
Components sorting function
- Parameters Measured：Ls/ Lp/ Cs/ Cp/ Rs/ R p/ D/ Q/ Θ/ ESR / L C R auto selection
- LCD Display：Dual 19999/ 1999 display & bar graph 51 segment
- Measuring rate：Approx. 2 times per second
- Range：Automatic
- Overload：”OL” Display On LCD
-
Low Battery：
Display On LCD
- Auto Power Off：In 5 Minutes Approx.
- Battery：9V x1
- Safety standard：IEC 61326-1 & IEC 61326-2-2
Measurement Ranges：
Accuracy: ±(% of reading + number of least significant digits) at 23°C ± 5°C, <75% R.H.
1. Specifications are based on measurement performed at input sockets or terminals with Alligator Test Lead Case (TL-21) after short & open calibration.
2. DUT ( device under test ) & Test leads should be properly shielded to GUARD if necessary.
3. To make better precision measurements on extremely high or low impedance ranges of L,C,R, it is highly recommended that do OPEN/SHORT calibration before measuring for following ranges marked with *
Resistance(Parallel / Series mode)：
|
Range |
Resolution |
100/120Hz |
1kHz |
10kHz |
100kHz |
|
20.000Ω |
0.001Ω |
─ |
1.0%+3* |
1.0%+3* |
2.0%+3* |
|
200.00Ω |
0.01Ω |
1.0%+3 |
0.3%+2 |
0.3%+2 |
0.6%+3 |
|
2.0000kΩ |
0.0001kΩ |
0.3%+2 |
0.3%+2 |
0.3%+2 |
0.6%+3 |
|
20.000kΩ |
0.001kΩ |
0.3%+2 |
0.3%+2 |
0.3%+2 |
0.6%+3 |
|
200.00kΩ |
0.01kΩ |
0.5%+2 |
0.5%+2 |
0.5%+2 |
1.0%+3 |
|
2.0000MΩ (2.000MΩ) |
0.0001MΩ |
1.0%+3 |
1.0%+3 |
1.0%+3 |
─ |
|
0.001MΩ |
─ |
─ |
─ |
2.0%+3* |
|
|
20.000MΩ (20.00MΩ) |
0.001MΩ |
2.0%+3* |
2.0%+3* |
─ |
─ |
|
0.01MΩ |
─ |
─ |
2.0%+3* |
─ |
|
|
200.0MΩ |
0.1MΩ |
2.0%+3* |
2.0%+3* |
─ |
─ |
* Do open/short calibration before measuring for above ranges with * to have better precision measurements.
DCR
|
Range |
Resolution |
Accuracy |
|
200.00Ω |
0.01Ω |
1.0%+3* |
|
2.0000kΩ |
0.0001kΩ |
0.2%+2 |
|
20.000kΩ |
0.001kΩ |
0.2%+2 |
|
200.00kΩ |
0.01kΩ |
0.5%+2 |
|
2.0000MΩ |
0.0001MΩ |
1.0%+3 |
|
20.000MΩ |
0.001MΩ |
2.0%+3* |
|
200.0MΩ |
0.1MΩ |
2.0%+3* |
** Do open/short calibration before measuring for above ranges with * to have better precision measurements.
Capacitance (Parallel / Series mode)：
|
Range |
Resolution |
100/120Hz |
1kHz |
10kHz |
100kHz |
|
200.00pF |
0.01pF |
─ |
─ |
1.2%+5* |
2.0%+5* |
|
2000.0pF |
0.1pF |
─ |
2.0%+3* |
0.3%+2 |
0.6%+3 |
|
20.000nF |
0.001nF |
2.0%+3* |
0.3%+2 |
0.3%+2 |
0.6%+3 |
|
200.00nF |
0.01nF |
0.3%+2 |
0.3%+2 |
0.3%+2 |
0.6%+3 |
|
2000.0nF |
0.1nF |
0.3%+2 |
0.3%+2 |
0.6%+2 |
2.0%+5* |
|
20.000μF (20.00μF) |
0.001μF |
0.3%+2 |
0.6%+2 |
1.2%+5* |
─ |
|
0.01μF |
─ |
─ |
─ |
3.0%+5 (10μF max.)* |
|
|
200.00μF (200.0μF) |
0.01μF |
0.6%+2 |
1.0%+3* |
─ |
─ |
|
0.1μF |
─ |
─ |
3.0%+5 (100μF max.)* |
─ |
|
|
2000.0μF (2000μF) |
0.1μF |
1.0%+3* |
─ |
─ |
─ |
|
1μF |
─ |
1.2%+3* |
─ |
─ |
|
|
20.00mF |
0.01mF |
1.2%+3* |
─ |
─ |
─ |
*If reading <2000, unit on display is pF
* Do open/short calibration before measuring for above ranges with * to have better precision measurements.
Inductance (Parallel / Series mode).
|
Range |
Resolution |
100/120Hz |
1kHz |
10kHz |
100kHz |
|
20.000μH |
0.001μH |
─ |
─ |
─ |
2.5%+5* |
|
200.00μH |
0.01μH |
─ |
─ |
1.2%+5* |
0.6%+3 |
|
2000.0μH |
0.1μH |
─ |
2.0%+5* |
0.6%+3 |
0.6%+3 |
|
20.000mH |
0.001mH |
1.2%+5* |
1.0%+5 |
0.3%+2 |
0.6%+3 |
|
200.00mH |
0.01mH |
0.3%+2 |
0.6%+3 |
0.3%+2 |
1.2%+5* |
|
2000.0mH |
0.1mH |
0.3%+2 |
0.3%+2 |
0.6%+3 |
─ |
|
20.000H |
0.001H |
0.3%+2 |
0.6%+3 |
1.2%+5* |
─ |
|
200.0H |
0.1H |
0.6%+3 |
1.2%+5* |
─ |
─ |
|
2.000KH |
0.001KH |
1.2%+5* |
─ |
─ |
─ |
*If reading <2000, unit on display is μH
* Do open/short calibration before measuring for above ranges with * to have better precision measurements.
Accuracy v.s. Resistance (ZDUT)
|
|
DCR |
100/120Hz |
1kHz |
10kHz |
100kHz |
|
0.1~1Ω |
1.2%+5* |
1.2%+5* |
1.2%+5* |
1.2%+5* |
2.5%+5* |
|
1~10Ω |
0.6%+3* |
0.6%+3* |
0.6%+3* |
0.6%+3* |
1.2%+5* |
|
10~100kΩ |
0.3%+2 |
0.3%+2 |
0.3%+2 |
0.3%+2 |
0.6%+3 |
|
100k~1MΩ |
0.6%+3 |
0.6%+3 |
0.6%+3 |
0.6%+3 |
2.5%+5* 100k~2MΩ |
|
1M~20MΩ |
1.2%+5* |
1.2%+5* |
1.2%+5* |
2.5%+5* |
|
|
>20MΩ |
2.5%+5* |
2.5%+5* |
2.5%+5* |
─ |
─ |
* Do open/short calibration before measuring for above ranges with * to have better precision measurements.
TEMP./Humidity：
- Operation：0°C~ 50°C(32℉~122℉)/<70% R.H.(no condensation)
- Storage：-20°C~ 60°C(-4℉~140℉)/<80%R.H.(no condensation)
Dimension & Weight：
- 188(L)x95(W)x52(H)mm
- Approx.350g (excluding battery)
Accessories：
- Alligator test lead case (TL-21) x 1
- AC/DC Adaptor x 1
- Guard Line (TL-23) x 1
- DC 9V Battery x1
- Instruction Manual x1
- Carry case x 1
Additional Accessories for with USB Function：
- Optical IR to USB PC link x 1
- CD Rom (software) x 1

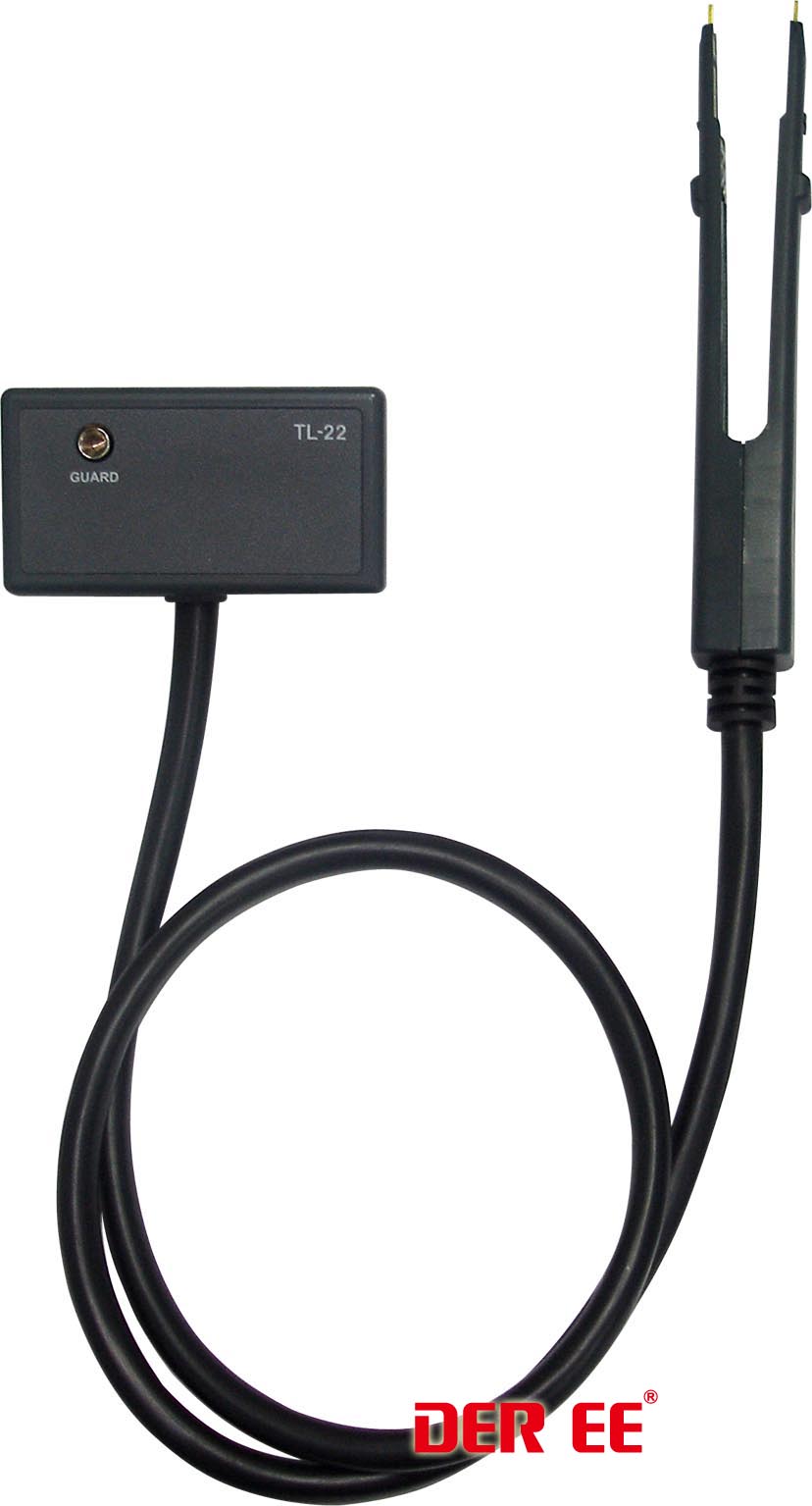

- TL-22 SMD Tweezers x 1
- Auto L/C/R check
- 100 / 120 / 1K / 10K / 100K Hz test frequency
- 20,000 / 2,000 counts display
- Backlight
- Ls/ Lp/ Cs/ Cp/ Rs/ Rp/ DCR with D/Q/θ/ESR measurement
- Relative mode
- Series / Parallel modes
-
Components sorting
function
*Selectable tolerance ±0.25%、±0.5%、± 1%、±2%、±5%、±10%、±20%、-20%+80% - Low battery indication
- 4-wire Kelvin measurement
